10,000
Charge cycles, up to
15 Year
Warranty
100%
Usable capacity
8kW+
Inverter size
Sumray Solar Battery Installations Castle Hill NSW
Bigger inverter
Inverter size matters when everything is on at night.
The inverter decides how much power your battery can deliver at once. Run the oven, aircon and EV charger together and a small inverter runs out of headroom. Your home then pulls the rest from the grid, at the most expensive time of day. We pair every Sumray battery with an 8kW or larger Solis inverter.
We confirm sizing at your free on-site inspection.
28KWH Sumray Solar Battery Installation NSW
Longer life
Built to outlast the rest
Sumray is engineered for up to 10,000 charge cycles and backed by a 15 year warranty. More cycles and a longer warranty mean fewer replacements and a lower cost over the life of the battery. At one full cycle a day, 10,000 cycles is over 27 years of daily use. Cycle life is a design rating, not a guarantee. See the warranty terms for what is covered.

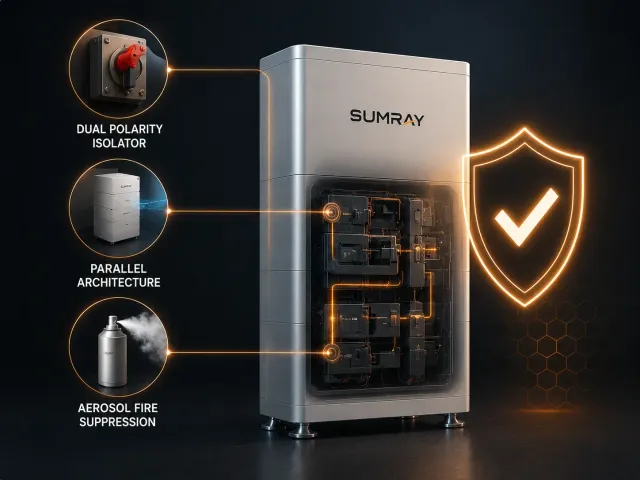

Built safer
Triple-layer safety architecture
Sumray has aerosol fire suppression built into the battery, not added on. Module-level protection means a fault in one module doesn’t shut down the whole system. We install to Australian standards and follow the manufacturer’s guide, which also keeps your warranty valid.
Battery heating
Reliable charging, even in the cold
Sumray has integrated heating, so the battery can keep charging on cold mornings and winter nights. You don’t have to wait for warmer weather to get the most from your system.
Sumray systems
28kWh battery. Installed.
Pick your inverter.
Modular design means it’s upgradable to 42kWh or 56kWh.
Single phase
8kW SOLIS INVERTER
$4,999
28kWh Sumray battery + inverter, installed
✔ 15 year warranty
✔ Up to 10,000 charge cycles
✔ Built-in aerosol fire suppression
✔ App monitoring
Three phase
10kW SOLIS INVERTER
$5,999
28kWh Sumray battery + inverter, installed
✔ 15 year warranty
✔ Up to 10,000 charge cycles
✔ Built-in aerosol fire suppression
✔ App monitoring
Three phase
12kW SOLIS INVERTER
$6,999
28kWh Sumray battery + inverter, installed
✔ 15 year warranty
✔ Up to 10,000 charge cycles
✔ Built-in aerosol fire suppression
✔ App monitoring
Need a custom system sized for your home? Contact us today

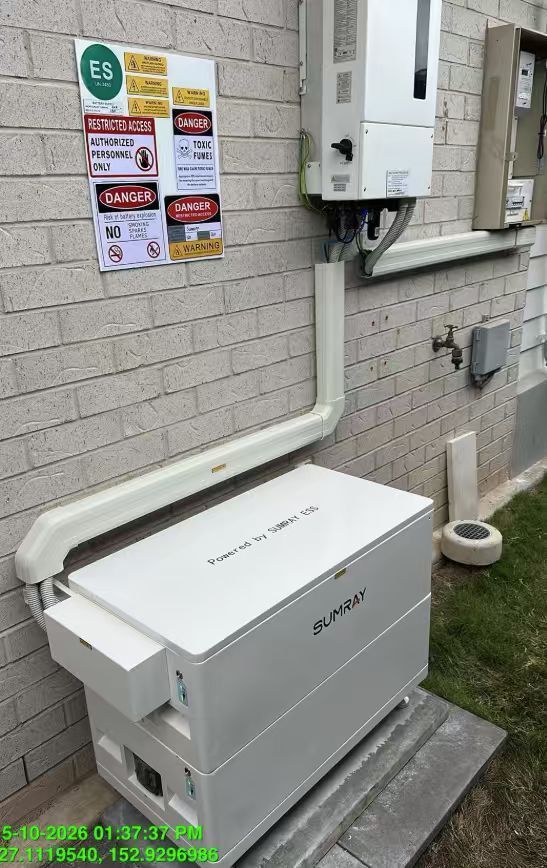

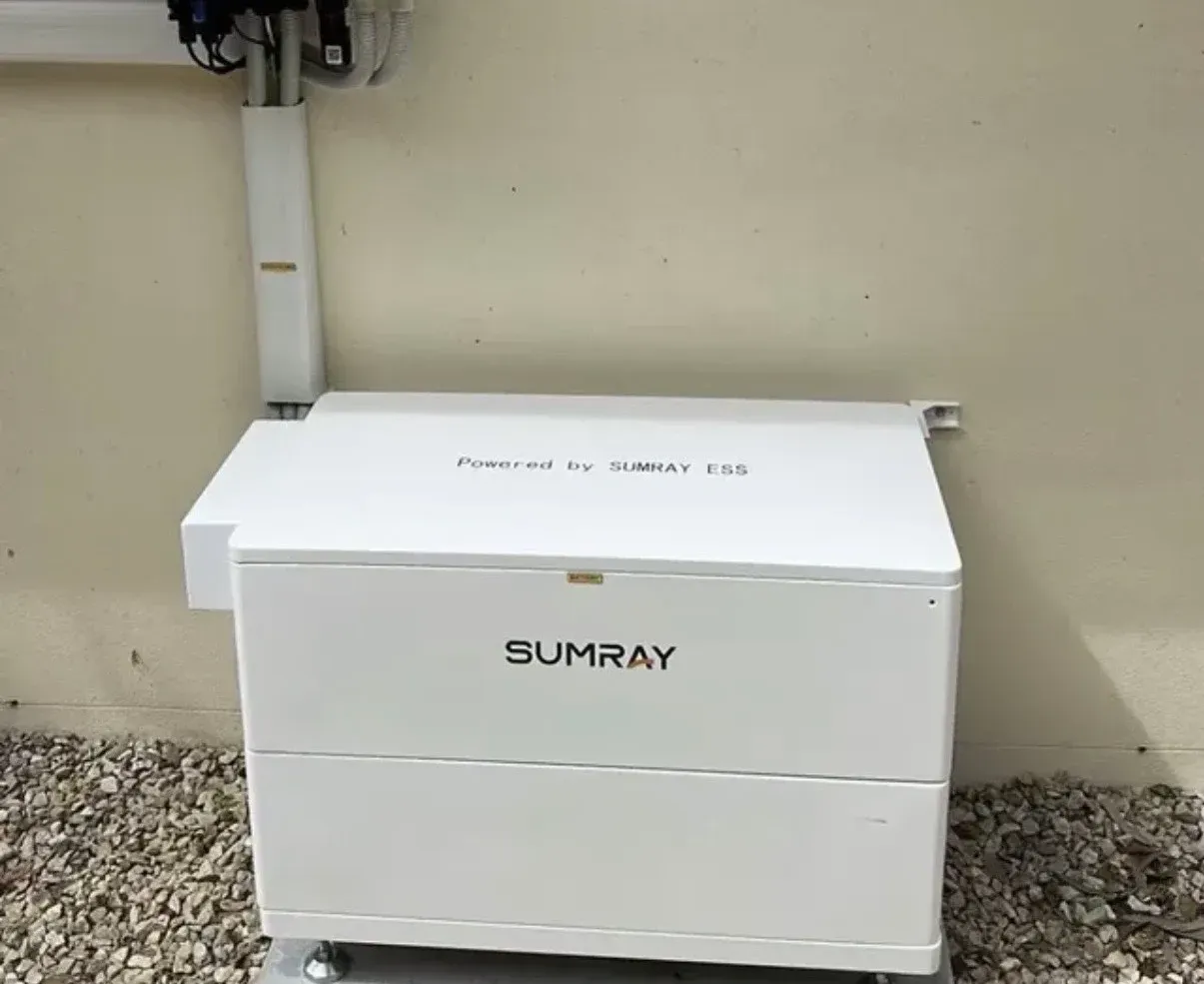

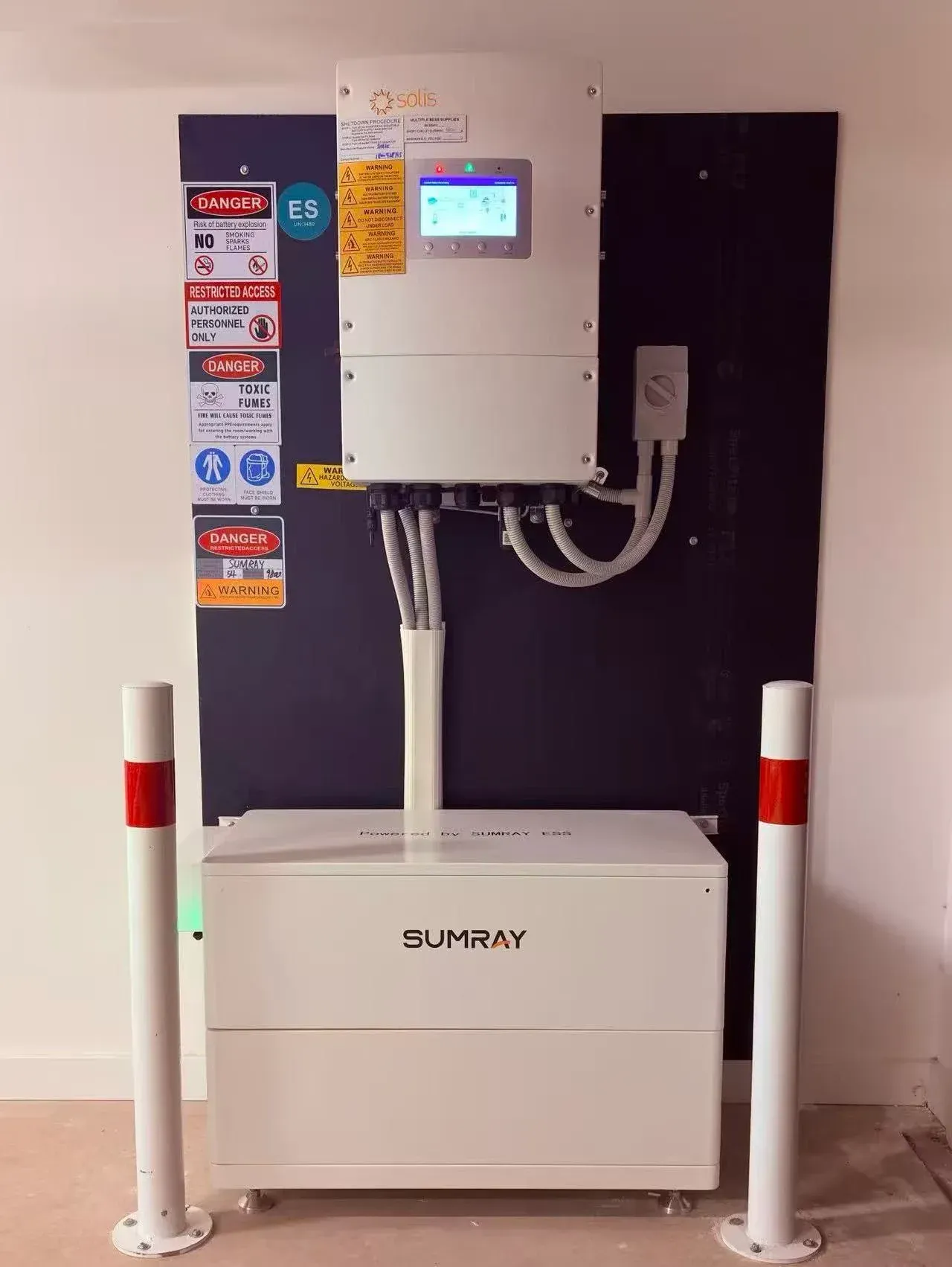

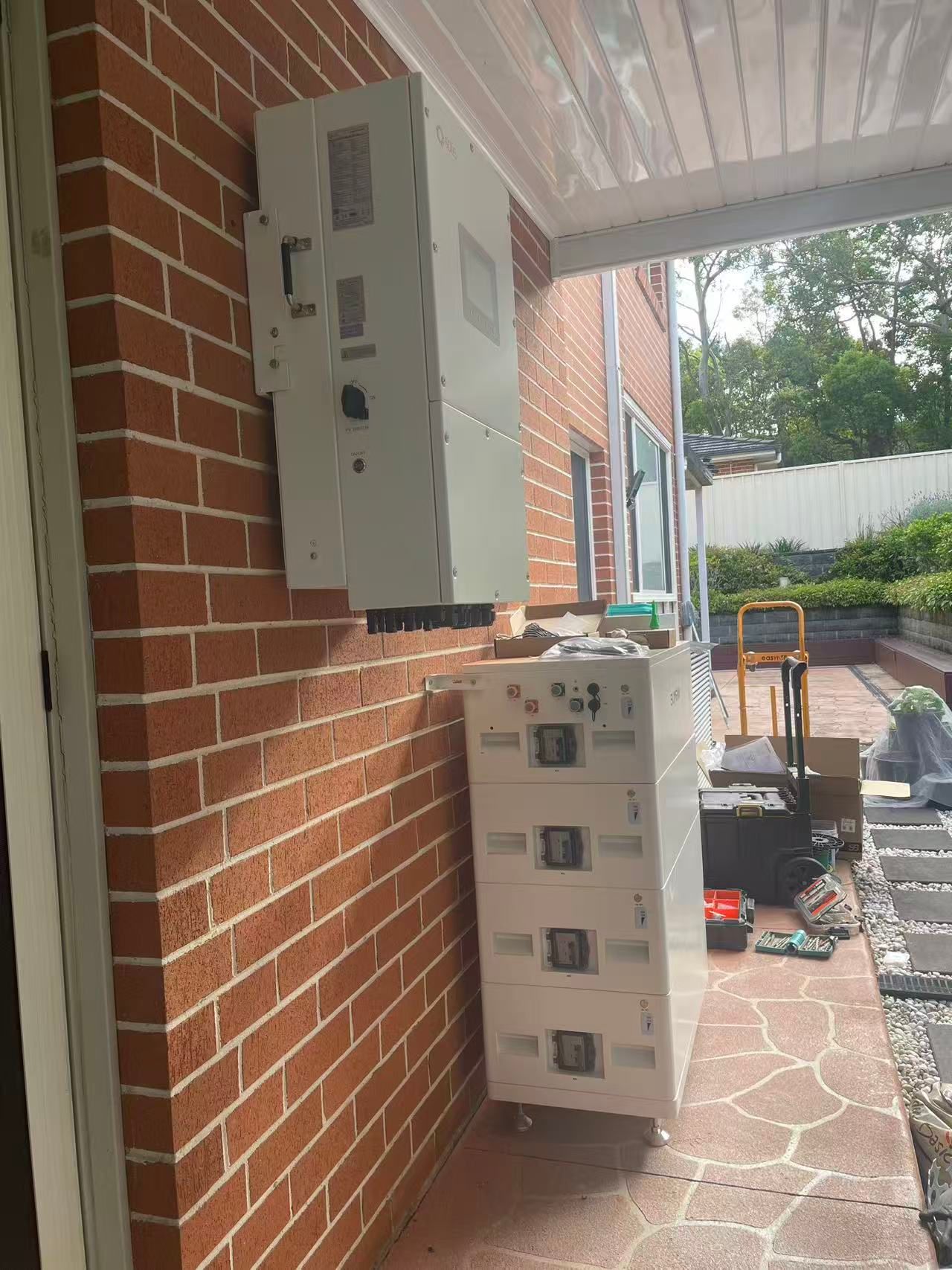

Recent installs
Installed by our team across NSW.
Battery specifications and downloads
Rated voltage 48V. Operating voltage 42 to 54V. Up to 4 units in parallel. CAN communication. Natural convection cooling. IP66 ingress protection, C4 corrosion protection. Charging 0 to 50°C, discharging -20 to 50°C. Optional battery heating for cold climates. Certified to UN38.3, SDS, CB62619, IEC62040, IEC62477, IEC61000, IEC60730 and IEC60068-2-52.
Documents: ✔ Sumray Battery Information ✔ Sumray 15 Year Warranty ✔ Sumray User Manual ✔ Solis Single- Phase 8kw Hybrid Inverter ✔ Solis Single-Phase 10kw Hybrid Inverter ✔ Solis 3-Phase 10-12kw Hybrid Inverter
Why choose us
Why Get Your Sumray Battery Through SunHarvest?
1
Made to go the distance
15-year warranty, rated to 10,000 cycles. Most batteries stop at a 10-year warranty.
2
Runs your home at night
Paired with an 8kW or larger Solis inverter, so the oven, aircon and EV charger run from your battery.
3
Grows with your home
Stackable 14kWh modules. Start with what you need and add more later, up to 56kWh.
4
Built for Aussie conditions
IP66 weather protection, C4 corrosion protection, and keeps charging through Australian winters.
Sumray FAQs
Questions about Sumray.
What does 10,000 cycles mean in real life?
At one full cycle a day, 10,000 cycles is over 27 years of daily use. It is a design rating, not a guarantee, and warranty terms apply.
What does the 15 year warranty cover?
Sumray’s 15 year warranty covers defects in the battery’s hardware and electronics for 15 years from installation. It also guarantees the battery keeps at least 60% of its usable energy for 15 years, or until 10,000 full charge cycles, whichever comes first. Claims go through your installer, and Sumray covers replacement parts and, in some areas, transport and labour. Report any fault within one month.
Which inverter do I need?
Battery size and inverter size do different jobs. The battery stores energy, so it decides how long power lasts. The inverter decides how much power can flow at once, so it decides how many appliances can run together.
Think about your evening. If the oven, aircon and EV charger all run at the same time, they need more power than a small inverter can supply. The rest gets pulled from the grid.
We check your appliances, power use and switchboard at your free on-site inspection, then recommend the right size for your home.
Can I add more battery later?
Sumray batteries are built from 14kWh stackable modules. Start with 28kWh and add modules later, up to 4 modules up to 56kWh per inverter.
Will it work with my existing solar?
Often, yes. We can add a Sumray battery to many existing solar systems. Sumray must be paired with a Solis inverter, so the first check is whether your current inverter is compatible or needs replacing. We also check your panel array, switchboard and how you use power, then size the battery and inverter to suit. Every home is different, so we confirm everything at a free on-site inspection.
Is it suitable for coastal homes?
Sumray is IP66 rated with C4 corrosion protection, designed for demanding conditions. If your home is near the coast, we check the install site first and request written approval from Sumray before installing, so your warranty stays valid.
